Membuat Kabel Twisted Pair Ethernet (RJ-45 / RJ-11)

Twisted Pair Ethernet

Kabel Twisted Pair ini terbagi menjadi dua jenis yaitu shielded twisted pair (STP)  dan unshielded twisted pair (UTP). STP adalah jenis kabel yang memiliki selubung pembungkus sedangkan UTP tidak mempunyai selubung pembungkus. Untuk koneksinya kabel jenis ini menggunakan konektor RJ-11 atau RJ-45.
Kategori Twisted Pair Cable

Pada twisted pair (10 BaseT) network, komputer disusun membentuk suatu pola Star. Setiap PC memiliki satu kabel twisted pair yang tersentral pada HUB. Twisted pair umumnya lebih handal (reliable) dibandingkan dengan thin coax, karena HUB mempunyai kemampuan data error correction dan meningkatkan kecepatan transmisi. Saat ini ada beberapa grade atau kategori dari kabel twisted pair. Kategory tersebut dapat dilihat pada tabel dibawah :

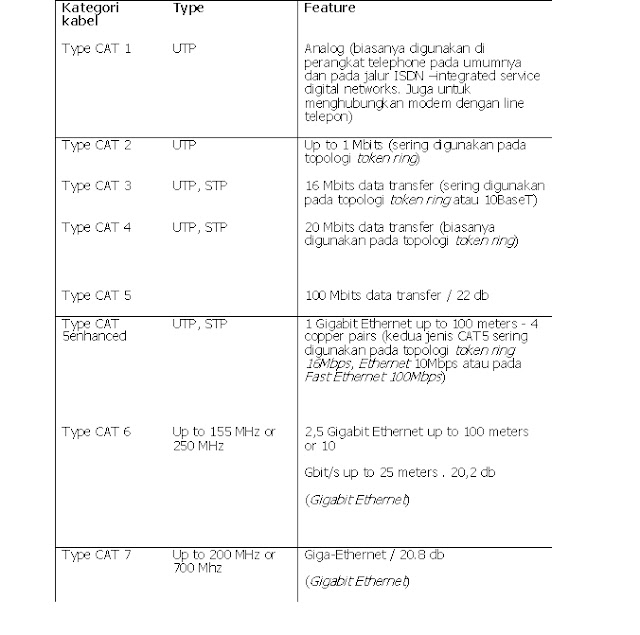

Pemberian kategori 1/2/3/4/5/6 merupakan kategori spesifikasi untuk masing-masing kabel tembaga dan juga untuk jack. Masing-masing merupakan seri revisi atas kualitas kabel, kualitas pembungkusan kabel (isolator) dan juga untuk kualitas “belitan” (twist) masing-masing pasang kabel. Selain itu juga untuk menentukan besaran frekuensi yang bisa lewat pada sarana kabel tersebut, dan juga kualitas isolator sehingga bisa mengurangi efek induksi antar kabel (noise bisa ditekan sedemikian rupa). Perlu diperhatikan juga, spesifikasi antara CAT5 dan CAT5 enchanced mempunyai standar industri yang sama, namun pada CAT5e sudah dilengkapi dengan insulator untuk mengurangi efek induksi atau electromagnetic interference. Kabel CAT5e bisa digunakan untuk menghubungkan network hingga kecepatan 1Gbps.
Kabel UTP, STP dan Konektor RJ-45

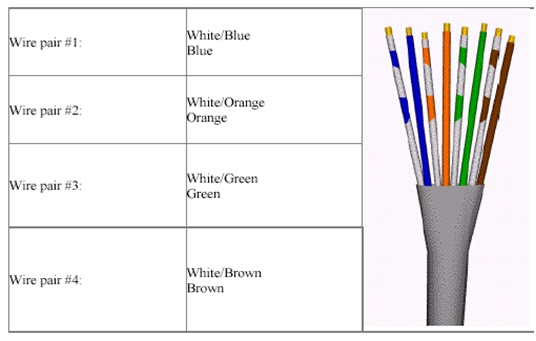

UTP Cable (khususnya CAT5 / CAT5e)
Kategori 5 atau 5e adalah yang paling reliable dan memiliki kompabilitas yang tinggi, dan yang paling disarankan, baik pada 10 Mbps dan Fast Ethernet (100Mbps). Konector yang bisa digunakan untuk UTP Cable CAT5 adalah RJ-45. Untuk penggunaan koneksi komputer, dikenal 2 buah tipe penyambungan kabel UTP ini, yaitu straight cable dan crossover cable. Fungsi masing-masing jenis koneksi ini berbeda, straight cable digunakan untuk menghubungkan client ke HUB/Router, sedangkan crossover cable digunakan untuk menghubungkan client ke client atau dalam kasus tertentu digunakan untuk menghubungkan HUB ke HUB.

UTP cable CAT 5

Straigt Cable

Menghubungkan ujung satu dengan ujung lain dengan satu warna. Sebenarnya urutan warna dari masing-masing kabel tidak menjadi masalah, namun ada standard secara internasional yang digunakan untuk straight cable ini, seperti tabel 6 :

Standar Pemasangan Kabel UTP pada Konektor RJ-45
Menghubungkan Komputer Ke HUB/Router, Maka Digunakan Cara Straigth Cable


Crossover Cable

Dasar Koneksi Crossover Untuk Kabel UTP

Pemasangan Kabel UTP Untuk Crossover

Menghubungkan Dua Komputer Tanpa Menggunakan HUB (Peer To Peer),
Atau Menghubungkan HUB Dengan HUB, Maka Digunakan Crossover Cable.
